This section describes how to install TICS Visual Studio Code Plugin. This plugin is compatible with Visual Studio Code versions 1.20.1 and up.
There are two ways to install the Visual Studio Code plugin: manually or through the TICS Installer.
For Linux machines, please look below in the Manual Installation section.
For Windows installations, follow the following steps.
Close Visual Studio Code, run the TICS installer and select Single Server or Multi Server->TICS client
When getting to the TICS Add-ins dialog, select Visual Studio Code from the checkbox list.
In the next step select the folder where Visual Studio Code installed, e.g
C:\Program Files\Microsoft VS Code.
Complete the installation.
In order to install the TICS Visual Studio Code plugin manually, you need to download a
distribution of the plugin from
This installation option also works for Linux machines.
To start Visual Studio Code from terminal for a given project, you can navigate to the project folder and run
vscode . or
This is due to an issue with Microsoft Visual Studio Code. The plugin needs access to your TICS environment variable.
Visual studio code currently does not read environment variables properly if started from the desktop icon.
For more information regarding this issue please refer to these issue reports. here and here.
Start Visual Studio Code.
Extensions menu, select the
Install from VSIX... option.
Select the downloaded plugin file in the
Install from VSIX file selection dialog and click
If successfully installed you should see the TICS VSCode Plugin extension page. You can now use TICS Visual Studio Code Plugin!
The TICS commands are available from

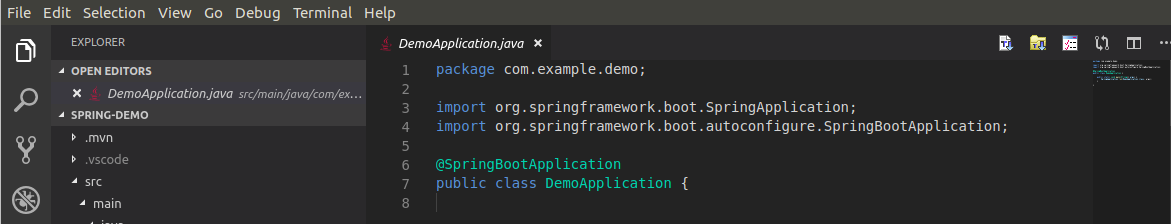

The TICS buttons will be visible in the Editor window once you open a file in the Editor.

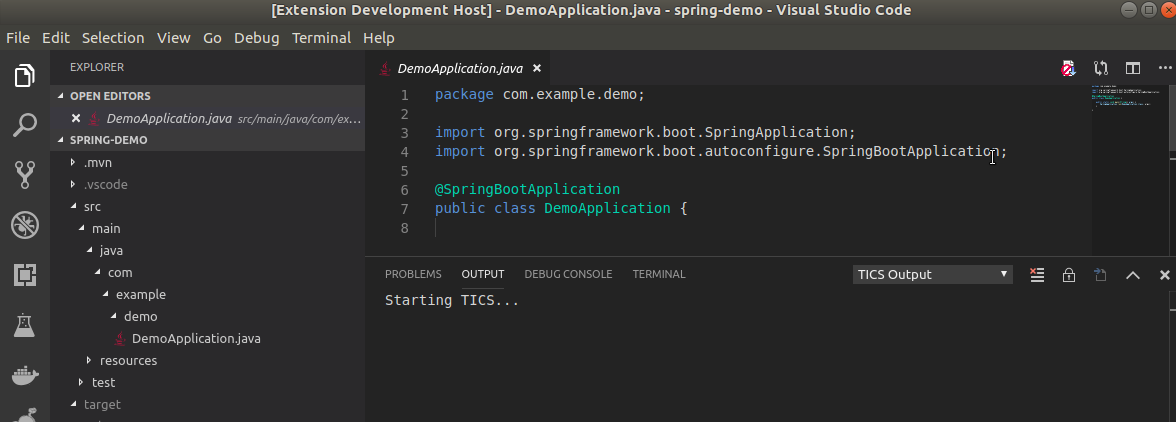

The Cancel Analysis button will be visible only if TICS Analysis is active.
To access the commands from the command palette, use
CTRL+Shift+P to open the Visual
Studio Code command palette. Start typing "TICS" in the command palette box. You will see all
available commands in the suggestion list.
To analyze a subfolder, right click on a folder and select "Analyze Folder"
To analyze a file from the explorer context menu, right click on a file and select "Analyze File"
The TICS buttons have the following meaning:
TICS: Analyze File: This command starts the TICS analysis. It results in an overview of the violations of the available coding standards.
TICS: Analyze Project: This command starts analyzing all files in the currently opened project.
TICS: Cancel Analysis: This command cancels the TICS run.
TICS: Configure TICS: This command opens the TICS Configuration Tool. This tool can be used to configure the behaviour of the TICS Client.
